King Aire, Inc. Citation Baggage S.T.C. List

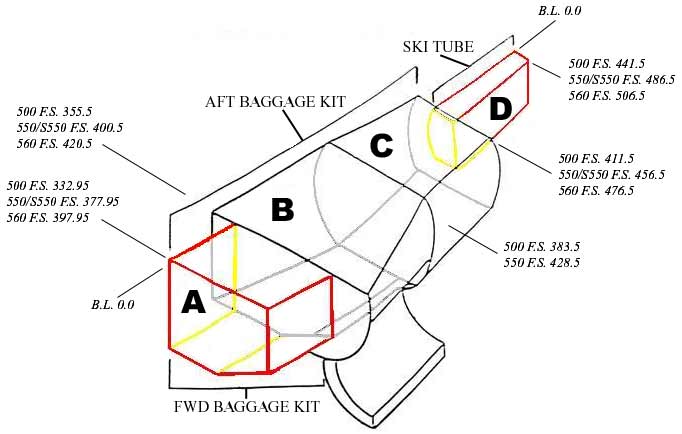

| S.T.C. NO. | A/C Application | DWG. ID. | LBS. @ F.S. Number | BAG.CAP. | INSTALL. |
| SA00114WI* (SKI TUBE) |
551 | D | 5 LBS. @ 471 (551) | 50 LBS. | 20 MNHRS **2 DAYS |
| SA2291CE (AFT BAG.) |
551 | A,B & C COMBINED |
60 LBS. @ 403.22 | 500 LBS. | 80 MNHRS **7 DAYS |
| SA2292CE (AFT BAG.) |
550 | A,B & C COMBINED |
60 LBS. @ 403.22 | 500 LBS. | 80 MNHRS **7 DAYS |
| SA2571CE (AFT BAG.) |
500 | A,B & C COMBINED |
69 LBS. @ 372.45*** | 400 LBS. | 90 MNHRS **8 DAYS |
| SA2572CE (AFT BAG.) |
501 | A,B & C COMBINED |
69 LBS. @ 372.45*** | 400 LBS. | 90 MNHRS **8 DAYS |
| SA2596CE (BAT.REL.) |
551 | FROM B TO FWD OF A | FROM 83 LBS. @ 419.7 TO 86.5 LBS. @ 364.5 | N/A | 25 MNHRS **2 DAYS |
| SA2597CE (BAT.REL.) |
550 | FROM B TO FWD OF A | FROM 83 LBS. @ 419.7 TO 86.5 LBS. @ 364.5 | N/A | 25 MNHRS **2 DAYS |
| SA2688CE (FWD BAG.) |
550/S550/560 | A | 10 LBS. @ 389.25 (550) OR @ 409.25 (560) | N/A | 35 MNHRS **3 DAYS |
| SA2692CE (SKI TUBE) |
550/S550/560 (Opt. 500/501) |
D | 5 LBS. @ 426 (500), @ 471 (550), @ 491 (560)*** | N/A | 35 MNHRS **3 DAYS |
*FOR PART 23 AIRCRAFT ONLY
**OUR INSTALLER
*** THE 500 OR 501 SKI TUBE KIT IS AN OPTIONAL PART OF ITS STC'D AFT BAG. KIT.
